Description

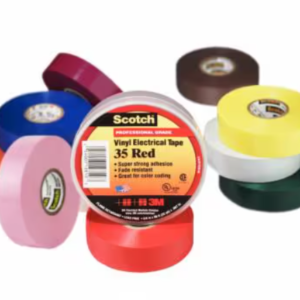

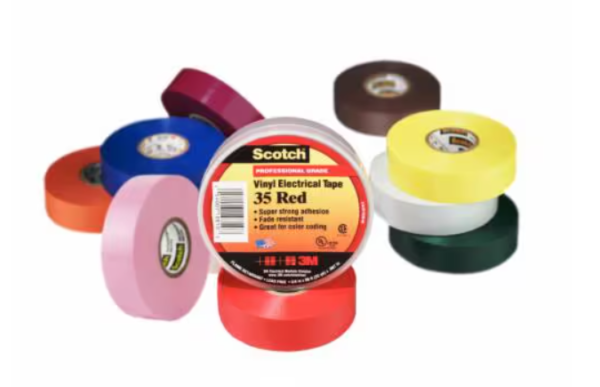

3M™ Scotch® 35 is a premium-grade, color-coded, vinyl electrical insulating tape designed for use in phase identification, color coding of motor leads and piping systems, and general purpose wire marking. It combines a tough, durable backing with excellent electrical and mechanical properties, providing long-lasting performance in both indoor and outdoor applications.
CLICK HERE
⚙️ Specifications:
| Property | Value |
|---|---|
| Backing Material | Polyvinyl Chloride (PVC) |
| Adhesive Type | Rubber Resin |
| Total Thickness | 0.178 mm (7 mil) |
| Temperature Rating | Up to 105°C (221°F) |
| Dielectric Strength | 1150 V/mil |
| Tensile Strength | 17.5 lbs/in (30.6 N/cm) |
| Elongation | 225% |
| Adhesion to Steel | 18 oz/in (2.0 N/cm) |
| UV & Weather Resistance | Excellent |
| Colors Available | Red, Blue, Green, Yellow, White, Orange, Brown, Gray, Violet, Black |
🛠️ Applications:
-
Phase identification and color coding in wiring systems
-
Motor lead identification
-
Marking and bundling of wires
-
General-purpose splicing and insulation
-
Indoor and outdoor electrical insulation
-
Used in commercial and industrial electrical installations
-
Ideal for use in control panels and conduit marking
