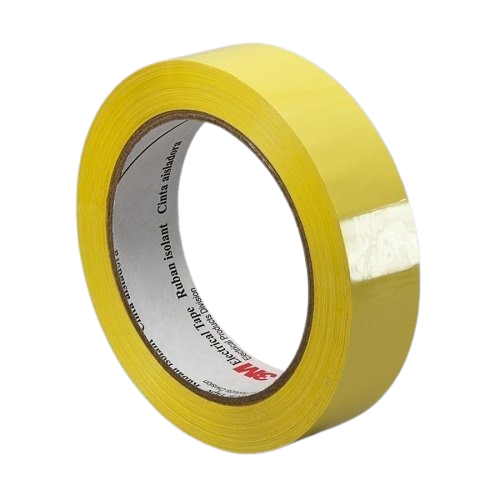

3M POLYESTER FILM ELECTRICAL TAPE -1350F-1

Description

3M™ 1350F-1 Polyester Film Electrical Tape is a high-performance, general-purpose insulating tape built with a flame-retardant polyester backing and a pressure-sensitive acrylic adhesive. Known for its excellent dielectric strength, mechanical durability, and chemical resistance, this tape is engineered for reliable insulation in electrical and electronic applications, even in elevated temperatures.

📋 Specifications

• Backing Material: Polyester film

• Adhesive Type: Acrylic

• Color: Yellow (standard)

• Total Thickness: ~0.063 mm (63 microns)

• Dielectric Strength: ~6,000 volts

• Temperature Rating:

  • Class B: up to 130°C (266°F)

• UL Listed & CSA Certified

• Flame-Retardant: Yes

• Solvent & Chemical Resistant: Yes

🛠️ Applications

• Insulation of transformer, motor, and coil windings

• Lead insulation and layer separation in electronics

• Reinforcement in electrical devices and components

• Use in printed circuit board (PCB) manufacturing

• General-purpose insulation requiring high thermal endurance

• Ideal for OEM and MRO environments
