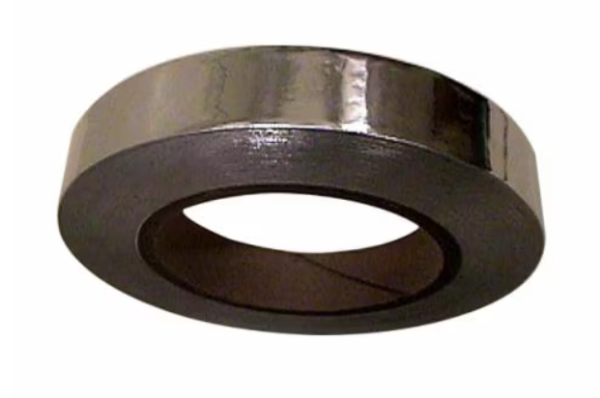

3M™ Aluminum Foil Tape 1120, 1/2 in x 36 yd

Description

3M™ 1120 EMI Shielding Tape is a highly conformable aluminum foil tape with a pressure-sensitive, electrically conductive acrylic adhesive. Engineered for EMI/RFI shielding and grounding applications, it delivers reliable electrical conductivity while offering excellent resistance to oxidation, solvents, and oils.

Its flame-retardant properties, UL Listing, and RoHS compliance make it a trusted choice for industries such as electronics, aerospace, telecommunications, and power systems. The tape comes with a removable liner for easy die-cutting and handling, making it ideal for precision applications in cable wrapping, connector shielding, and electronic enclosures.

🔧 Key Specifications & Features

• Backing Material: Embossed aluminum foil

• Adhesive Type: Electrically conductive acrylic adhesive

• Total Thickness: 4 mil (0.10 mm)

• Dimensions: 1/2 in (12.7 mm) width x 36 yds (32.9 m) length

• Electrical Rating: Rated for 600V dry applications

• Temperature Resistance: Withstands harsh conditions with strong adhesion

• Flame Retardant: Yes – designed for safety-critical environments

• Color: Silver metallic finish

• Handling: Supplied on a removable liner for easy die-cutting and processing

• Compliance: UL Listed & RoHS 2011/65/EU Compliant
