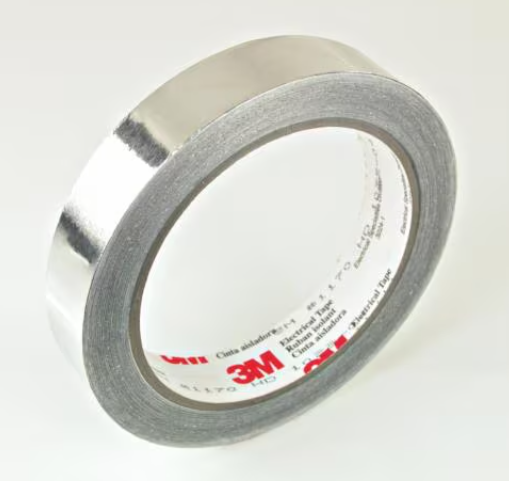

3M™ EMI Aluminum Foil Shielding Tape 1170

Description

3M™ EMI Shielding Tape 1170 is a flame-retardant aluminium foil tape with an electrically conductive acrylic adhesive. Designed for reliable EMI shielding, grounding, and static charge draining, it delivers excellent conductivity and secure adhesion to a wide range of surfaces. The tape comes with a removable liner for easy handling and die-cutting, making it versatile for use in industrial machinery, electronics, and communication systems.

Key Features

• ✅ Unique adhesive ensures low resistance & firm contact

• ✅ Provides effective EMI shielding & grounding

• ✅ Flame-retardant and UL Listed for safety

• ✅ Operates in a wide temperature range: -40°C to 130°C

• ✅ Suitable for 600V dry applications

• ✅ High shielding effectiveness: 85 dB (1 MHz to GHz)

• ✅ RoHS 2011/65/EU Compliant

Specifications

• Backing Material: Aluminium foil

• Adhesive Type: Conductive acrylic, pressure-sensitive

• Total Thickness: ~2.7 mil (0.07 mm)

• Conductivity: Through adhesive (low resistance)

• Operating Temperature: -40°C to 130°C (-40°F to 266°F)

• Applications:

  • EMI/RFI shielding

  • Static charge draining

  • Grounding and bonding

  • Seaming shielded rooms

  • Cable wrapping

  • Providing contact to non-solderable surfaces
