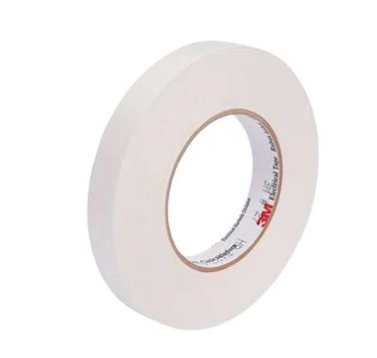

3M GLASS CLOTH ELECTRICAL TAPE 27

Description

🧾 Description

3M™ Glass Cloth Electrical Tape 27 is a premium-grade, glass cloth-backed tape designed for high-temperature electrical insulation. Coated with a pressure-sensitive rubber thermosetting adhesive, it delivers strong adhesion, abrasion resistance, and excellent heat stability up to 150°C. Ideal for applications where mechanical strength and thermal endurance are essential.

📋 Specifications

• Backing Material: Glass cloth

• Adhesive Type: Rubber thermosetting

• Color: White

• Total Thickness: ~0.18 mm (7.0 mils)

• Dielectric Strength: ~3,000 volts

• Temperature Class: Up to 150°C (302°F)

• Breaking Strength: High tensile durability

• Flame Retardant: Yes

• RoHS Compliant & UL Listed

🛠️ Applications

• Insulating and holding transformer coils and motor windings

• Cable harness wrapping in high-temperature zones

• Protection of wires, cables, and components from heat and abrasion

• Coil wrapping in dry-type transformers

• High-temp splicing and termination

• Used in aerospace, automotive, and industrial electrical assemblies
